Simple procedural dungeons in R

gamedev
r
r.oguelike
videogames
Author
Published

May 1, 2022

Gif showing the steps to generate an ASCII-character tiled dungeon in R. First, a map is created with four randomly-placed floor tiles, then they're connected with corridors, then the tiles around the floor tiles are converted from wall to floor tiles, randomly, for three iterations.

Three iterations to expand four randomly-placed floor tiles into a cavern.

tl;dr

I wrote a (very!) basic procedure to generate randomised ASCII-character tile-based dungeons for {r.oguelike}, an in-development roguelike-game-in-a-package for R.

Note

In 2024 it’s possible to put editable R code into this blog post thanks to WebR. So here’s the function that creates procedural dungeons. Hit the ‘run code’ button several times to generate a fresh cavern. Adjust the parameters and see what effect it has. Unfortunately this won’t print in colour.

Generate to accumulate

I wrote recently about the {r.oguelike} R package, which contains the beginnings of a roguelike game written entirely in R.

Hex sticker design for the 'r.oguelike' R package. Black background with bright green font, reminiscent of old computer terminal output. In the centre, a three-by-ten arrangement of hashmarks and periods, along with a single at symbol and dollar sign, which looks like a classic ACII tile-based roguelike game. The text 'r.oguelike' is underneath.

A key element of roguelike games is that the dungeons should be procedurally generated1 so that the player gets a different one each time they play.

There are many algorithmic systems for dungeon creation, like wave function collapse, perlin noise, binary space partitioning, cellular automata, etc.2 See the talk by Herbert Wolverson at Roguelike Celebration, for example.

I plan to take a look at these approaches in future, but I wanted to start with something a bit more… naïve. I just want a simple interconnected space that spawns with randomised rooms, corridors and galleries.

Excavations

Note

The {r.oguelike} package is a work in progress and is developing at pace. Many things explained below may have been superseded or changed by the time you read this.

Install/launch

You can install the (currently work-in-progress) {r.oguelike} package from GitHub, via {remotes}.

install.packages("remotes")  # if not already installed
remotes::install_github("matt-dray/r.oguelike")

You can also launch RStudio in the browser with {r.oguelike} preinstalled, thanks to Binder3 (may take a couple of minutes to load):

A button to launch a Binder instance that says 'launch binder' on it.

Prepare

Before we begin, note that we can talk about generative ‘dungeons’ in the context of connected rooms, like in The Binding of Isaac, or more freeform structures, like world maps in Dwarf Fortress. We’re going for the latter, which amounts to interconnected caverns.

The function we’ll be using is called generate_dungeon(), which prints to the console a cavern that differs each time you run it.4 You can alter the output using the arguments:

  • iterations is the number of times to ‘grow’ the caverns
  • n_row and n_col give the map dimensions
  • n_rooms is the number of rooms to spawn
  • is_snake for a cavern that is continuous from left to right and wiggly
  • is_organic for a more freeform vs ‘square’ look to the caverns
  • colour to print the output in colour

You can always run set.seed() before generate_dungeon() to create the same dungeon every time you run the function with the same parameters.

Demo

So here’s a smallish dungeon with 3 growth iterations for 4 starting rooms, on a map with tile dimensions of 20 rows by 30 columns.

dungeon <- r.oguelike::generate_dungeon(3, 20, 30, 4)

Here’s a screenshot of the output so you can see it in colour.

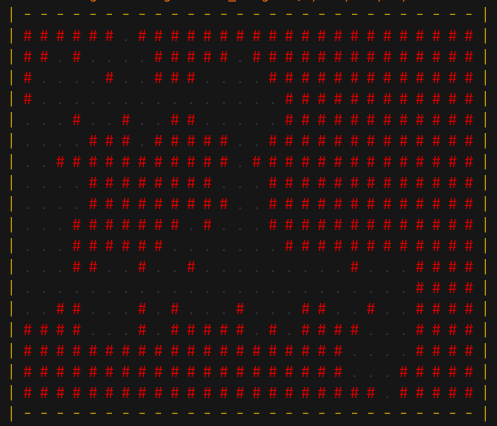

A tile-based map made of ASCII. Red hashmarks for cave walls. Black periods for cavern-floor tiles. Yellow hyphens and pipes for the boundary of the map. The cavern has a number of interconnected tunnels and some short dead-ends.

Click for the actual console output.
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - |
| # # # # # # . # # # # # # # # # # # # # # # # # # # # # |
| # # . # . . . . # # # # # . # # # # # # # # # # # # # # |
| # . . . . # . . # # # . . . . # # # # # # # # # # # # # |
| # . . . . . . . . . . . . . . . # # # # # # # # # # # # |
| . . . # . . # . . # # . . . . . # # # # # # # # # # # # |
| . . . . # # # . # # # # # . . # # # # # # # # # # # # # |
| . . # # # # # # # # # # # . # # # # # # # # # # # # # # |
| . . . . # # # # # # # # . . . # # # # # # # # # # # # # |
| . . . . # # # # # # # # # . . # # # # # # # # # # # # # |
| . . . # # # # # # # . # . . . # # # # # # # # # # # # # |
| . . . # # # # # # . . . . . . . # # # # # # # # # # # # |
| . . . # # . . # . . # . . . . . . . . . # . . . # # # # |
| . . . . . . . . . . . . . . . . . . . . . . . . # # # # |
| . . # # . . . # . # . . . # . . . # # . . # . . # # # # |
| # # # # . . . # . # # # # # . # . # # # # . . . # # # # |
| # # # # # # # # # # # # # # # # # # # # . . . . # # # # |
| # # # # # # # # # # # # # # # # # # # # . . . # # # # # |
| # # # # # # # # # # # # # # # # # # # # # # . # # # # # |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - |

So, in this example you can see we have a little cavern with some interconnected areas and a dead-end in the lower right. The tiles represent:

  • cavern-floor tiles (black periods), which is where the character can traverse
  • cave wall tiles (red hashmarks, which can’t be passed through)
  • a boundary around the edge (yellow hyphens and pipe symbols)

Note that the actual output from the function—a matrix that represents the dungeon tiles—is returned invisibly.

Click for a preview of the returned matrix.
# Preview first 10 rows and columns
dungeon[1:10, 1:10]
[,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9] [,10]
[1,] "|"  "-"  "-"  "-"  "-"  "-"  "-"  "-"  "-"  "-"
[2,] "|"  "#"  "#"  "#"  "#"  "#"  "#"  "."  "#"  "#"
[3,] "|"  "#"  "#"  "."  "#"  "."  "."  "."  "."  "#"
[4,] "|"  "#"  "."  "."  "."  "."  "#"  "."  "."  "#"
[5,] "|"  "#"  "."  "."  "."  "."  "."  "."  "."  "."
[6,] "|"  "."  "."  "."  "#"  "."  "."  "#"  "."  "."
[7,] "|"  "."  "."  "."  "."  "#"  "#"  "#"  "."  "#"
[8,] "|"  "."  "."  "#"  "#"  "#"  "#"  "#"  "#"  "#"
[9,] "|"  "."  "."  "."  "."  "#"  "#"  "#"  "#"  "#"
[10,] "|"  "."  "."  "."  "."  "#"  "#"  "#"  "#"  "#"

More examples

I think this process works best with a larger map grid (i.e. higher n_row and n_col values), more randomly-selected room start-points (higher n_rooms) and more growth steps (higher iterations).

Here’s a larger maze-like dungeon:

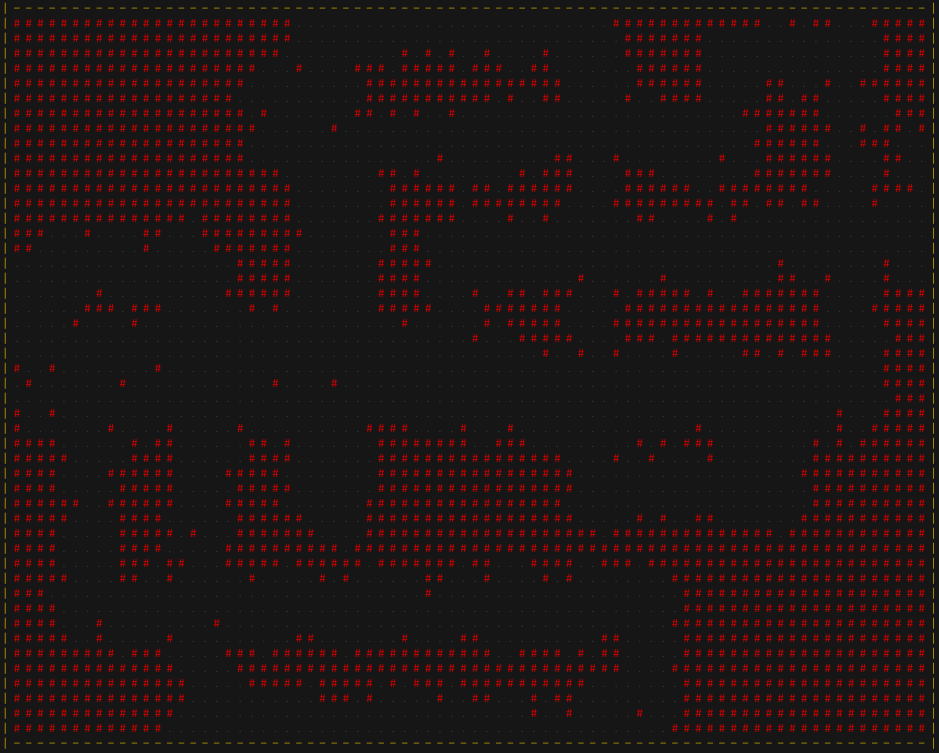

A dungeonlike map made from ASCII characters. Cave tiles are marked with a period and are black. Rock wall tiles are marked with red hashmarks. The outer boundary wall is made of yellow hyphens and pipe symbols. The corridors snake around, but are fully connected. There are some dead ends.

This one came out more like a doughnut, with a central ‘pillar’ of rock-wall tiles:

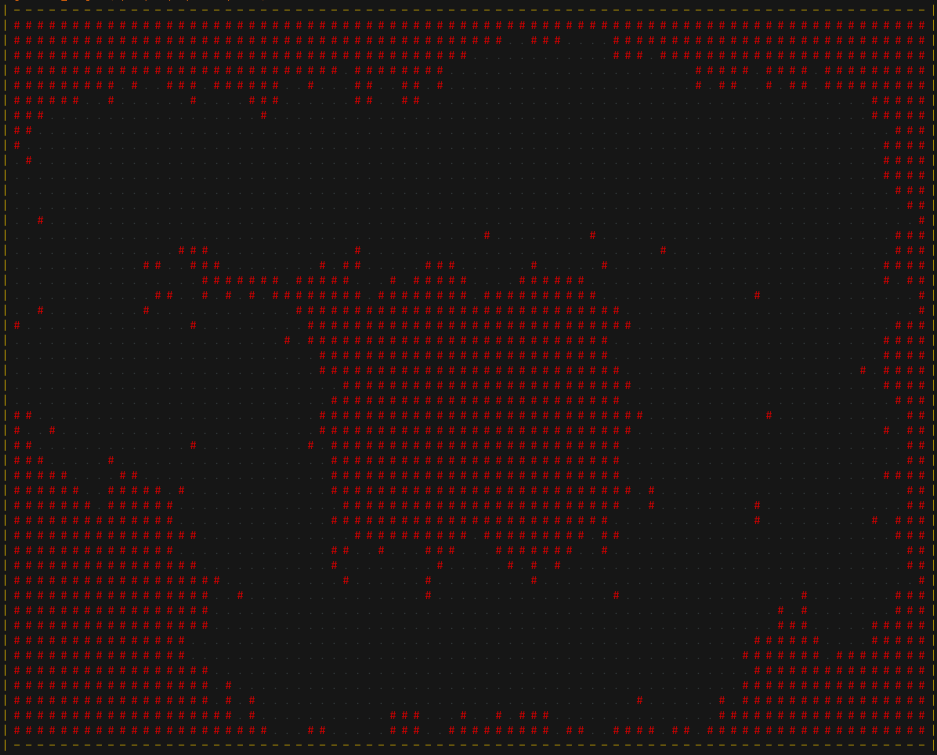

A dungeonlike map made from ASCII characters. Cave tiles are marked with a period and are black. Rock wall tiles are marked with red hashmarks. The outer boundary wall is made of yellow hyphens and pipe symbols. The cave is a big circle, connected around a single, central mass of rock.

And this one is the result of using is_snake = TRUE, which creates a single, long snaking cavern:

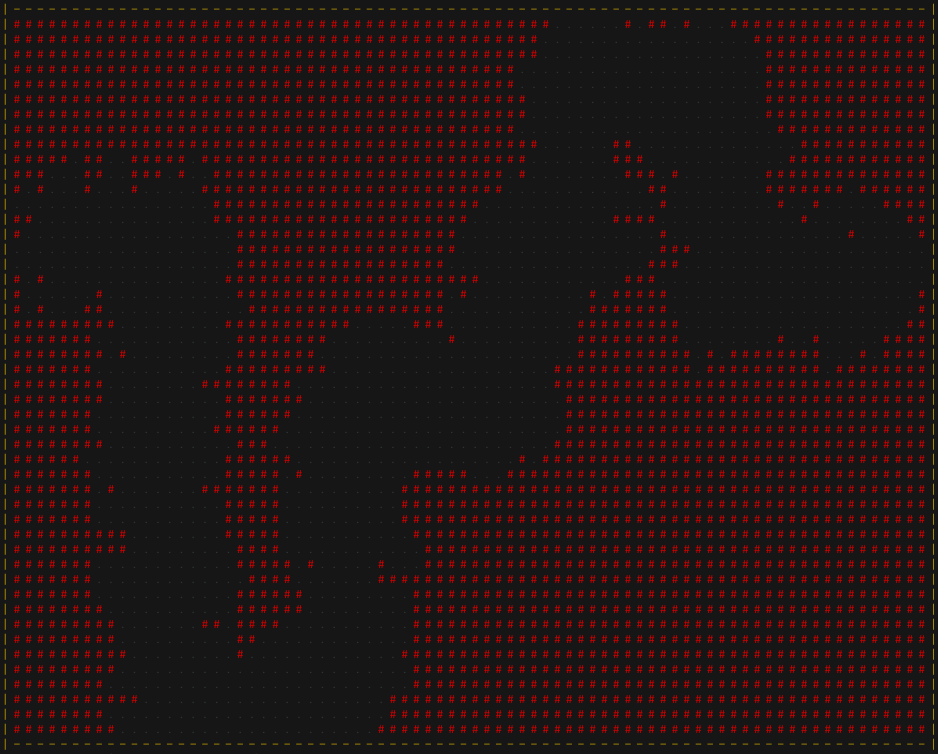

A dungeonlike map made from ASCII characters. Cave tiles are marked with a period and are black. Rock wall tiles are marked with red hashmarks. The outer boundary wall is made of yellow hyphens and pipe symbols. The corridor is a single snaking corridor from left to write, wiggling from top to bottom.

Here’s what happens if we set is_organic = FALSE and is_snake = TRUE. You get much obvious ‘rooms’ connected by small corridors:

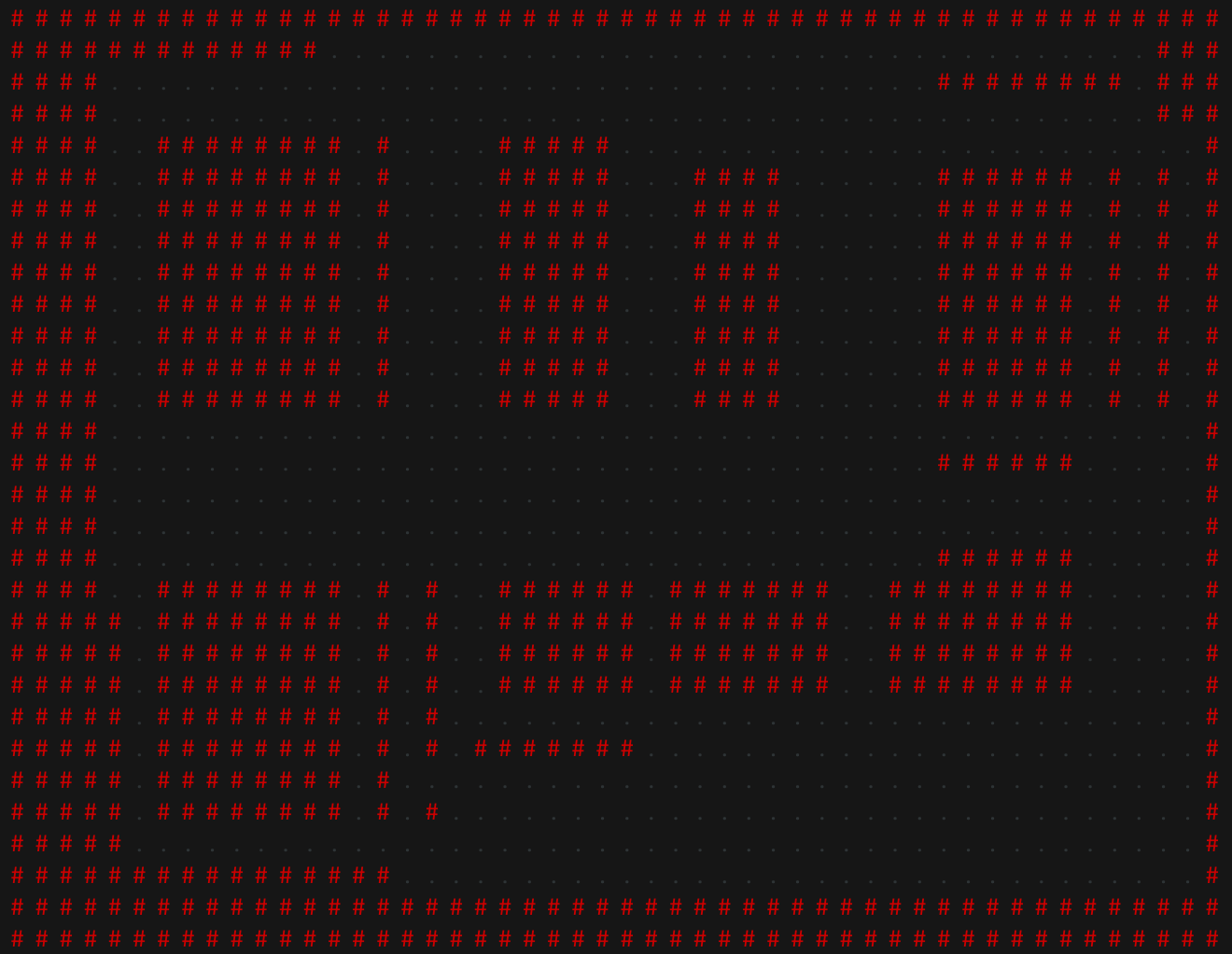

A dungeonlike map made from ASCII characters. Cave tiles are marked with a period and are black. Rock wall tiles are marked with red hashmarks. Four small, discrete rooms made of floor tiles are connected from left-to-right with corridors that are a single tile wide.

And if we set is_organic = FALSE and is_snake = FALSE we get something interconnected, but looks more ‘artificial’ or manmade with its mostly square walls:

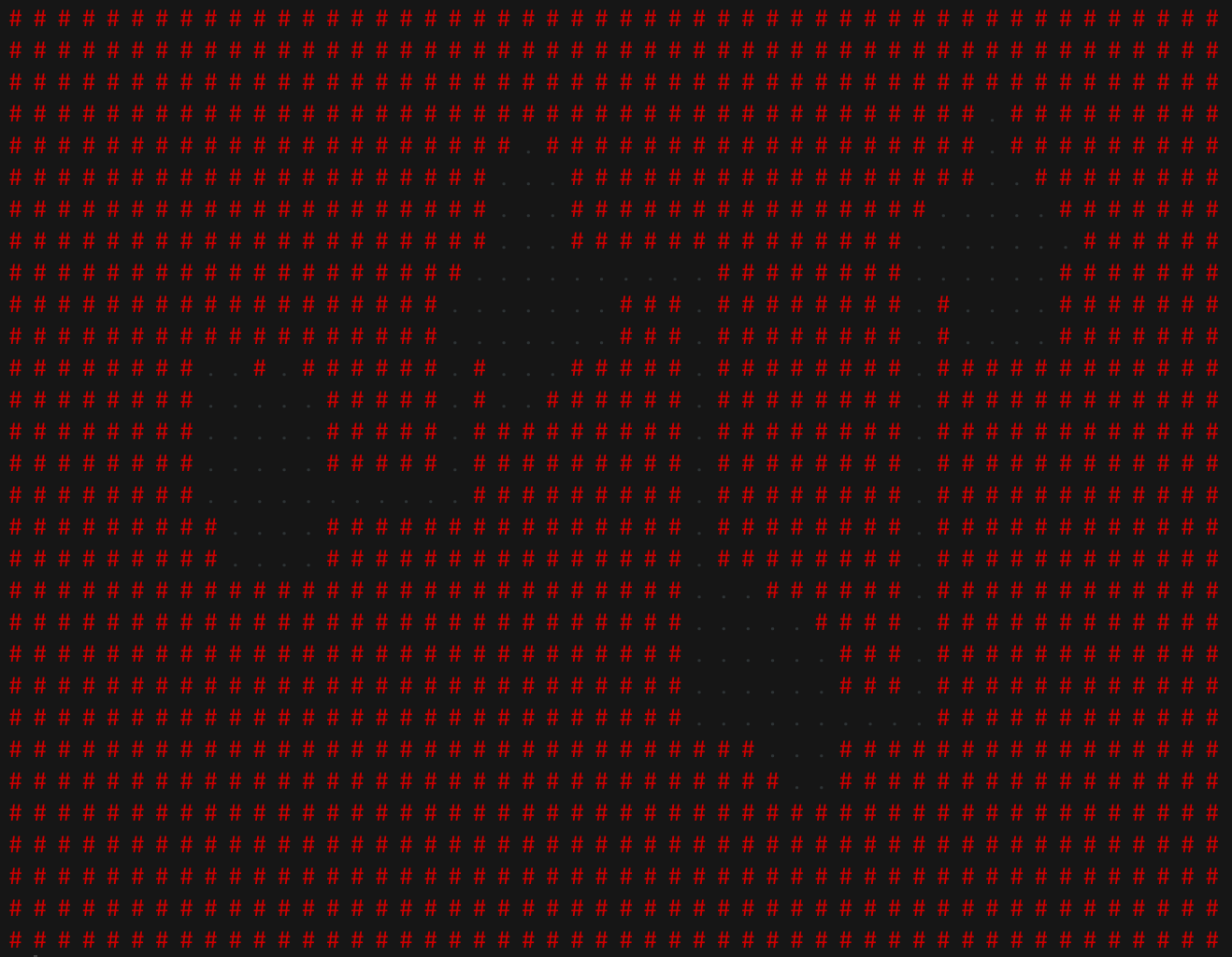

A dungeonlike map made from ASCII characters. Cave tiles are marked with a period and are black. Rock wall tiles are marked with red hashmarks. There are many straight-line corridors of different widths, which looks less organic and cavelike and more man-made.

You can see how the shape of these dungeons can be used as part of the storytelling. Is the player in a big cavern, hollowed out long ago by natural processes? Or perhaps in an underground city, chiselled-out by dwarves?

Proceed the procedure

What’s the actual process for generating these maps? The procedure is very simple: lay a map made entirely of wall tiles; select random sites for rooms5 and replace with floor tiles; connect them with floor-tile corridors; expand the floor tiles generatively.

The corridors are particularly important. Laying corridors is a cheap way of making all areas of the dungeon accessible, which maximises the opportunity for exploration. Vanilla implementations of some other approaches, like using perlin noise, would need post-processing to make sure isolated caves are connected up.

Note

After publishing this post, I had a quick play around with perlin noise for seeding dungeons. I put code and an example output in a small GitHub Gist. It uses noise_perlin() from the {ambient} package.

Functions

These steps are handled in the generate_dungeon() function by a few sub-functions, which looks a bit like this:

m <- .create_dungeon(n_row, n_col, n_rooms)

m <- .connect_dungeon(m, is_snake)

i <- 0

while (i < iterations) {
  m <- .grow_dungeon(m)
  i <- i + 1
}

.draw_dungeon(m, colour)

Not much right? But what’s actually happening?

  1. First, .create_dungeon():
    • prepares a matrix with dimensions n_row and n_col
    • fills the matrix with tiles that represent non-traversable rocky cave walls (#)
    • selects randomly an n_rooms number of non-edge tiles in that map and replaces them with traversable cavern-floor tiles (.)
  2. Then .connect_dungeon() (this function is run now if is_organic = TRUE, otherwise after .grow_dungeon() in the next step):
    • connects rooms with straight, right-angled corridors made of floor tiles (connected from lowest to highest if is_snake = TRUE, otherwise randomly)
  3. Now the iterative bit, .grow_dungeon(), which happens in a while-loop whose iterations are determined, which:
    • spawns randomly with sample() a new cavern-floor tile to the north, south, east or west or current floor tiles
    • performs one round of spawning for the number of iterations provided
  4. Finally, .draw_dungeon():
    • prints to the console, using cat(), each line of the matrix in turn
    • colours the output with the {crayon} package, if requested

And we can look at the output at each step to see what’s going on:

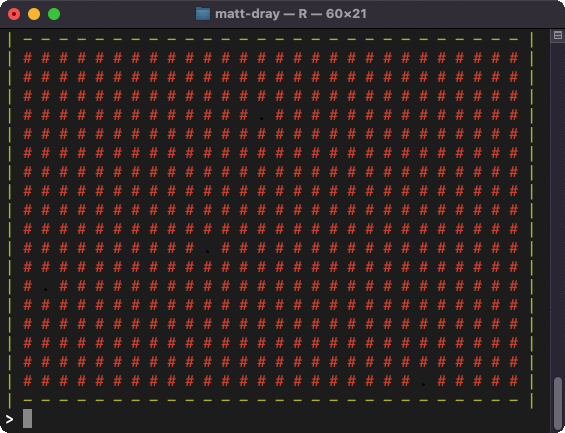

Gif showing the steps to generate an ASCII-character tiled dungeon in R. First, a map is created with four randomly-placed floor tiles, then they're connected with corridors, then the tiles around the floor tiles are converted from wall to floor tiles, randomly, for three iterations.

So, the map started with four randomly-selected floor tiles; these were joined with straight, right-angled corridors; then three iterations expanded out the floor space from the existing floor tiles.

Sampling

What does it mean to ‘expand out the floor space’? Let’s focus on the little bit of the .grow_dungeon() function that actually does this.

Here’s a tiny example matrix of wall tiles with a floor tile in the middle:

m <- matrix("#", 3, 3)  # wall tiles
m[2, 2] <- "."  # floor tiles
m
     [,1] [,2] [,3]
[1,] "#"  "#"  "#"
[2,] "#"  "."  "#"
[3,] "#"  "#"  "#"

Now we find the adjacent tiles and sample a random number of them to also become floor tiles.

start_tile <- which(m == ".")

adjacent_tiles <- c(
  start_tile - 1,        # north
  start_tile + 1,        # south
  start_tile - ncol(m),  # east
  start_tile + ncol(m)   # west
)

change_to_floor <- sample(
  adjacent_tiles,
  sample(1:length(adjacent_tiles), 1)
)

m[change_to_floor] <- "."

m
     [,1] [,2] [,3]
[1,] "#"  "#"  "#"
[2,] "."  "."  "#"
[3,] "#"  "."  "#"

So one, two, three, or all of the adjacent tiles could be turned to a floor tile.

This is then repeated for the number of iterations provided by the user.

Going deeper

So! I encourage you to play with this. Mess around with the arguments and see what you can come up with.

What now for developing the package? Well, the {r.oguelike} package already has the rudiments of gameplay in the start_game() function, so the next step is to place the player, enemies and items into these dungeon spaces and let the player explore them.

Ideally we can also create a system to place certain objects in certain spaces, like treasure in the far reaches of a dead-end, or a monster that’s in a narrow corridor and must be defeated to advance. Stuff like locked doors would be great too.

That’s much more roguelike-like, like, amirite?
