tl;dr

You can convert a line drawing to datapoints with a sprinkle of {magick}.

Ape escape

Have you seen that video where you’re so focused on counting basketball passes that you fail to see the gorilla moving across the screen?

This kind of selective attention was studied by two researchers, Yanai and Lercher, who provided subjects with a dataset that looked like a gorilla when plotted. The gorilla was found less often if the subjects were also given a hypothesis to investigate.

The study got some attention on Twitter last week. As a result, Isabella Velásquez wrote a great blogpost where she recreated the dataset using R and Python in tandem via the {reticulate} package.

I had a go at creating the dataset with base R and the excellent {magick} package for image manipulation.

Point it out

The jpeg image file used in the original paper can be downloaded from classroomclipart.com to a temporary location on your machine.

paste0(
"https://classroomclipart.com/images/gallery/",
"Clipart/Black_and_White_Clipart/Animals/",
"gorilla-waving-cartoon-black-white-outline-clipart-914.jpg"
),
tempfile(fileext = ".jpg")
)

We can read the file into R with {magick}.

img <-
list.files(tempdir(), pattern = ".jpg\$", full.names = TRUE) |>


With other {magick} functions we can:

• reduce to two distinct colours only (i.e. for the lines and background), which makes it easier to filter the data later
• convert from an image to point data
go <- img |>
magick::image_quantize(2) |>  # colour reduction
magick::image_raster() |>     # as x-y data
as.data.frame()

x y       col
1 1 1 #fefefeff
2 2 1 #fefefeff
3 3 1 #fefefeff
4 4 1 #fefefeff
5 5 1 #fefefeff
6 6 1 #fefefeff

And to prove we only have two colours (off-white for the background, grey for the lines):

unique(go\$col)
[1] "#fefefeff" "#555555ff"

Now we can:

• reverse the order of the y values so the gorilla is right-side up
• filter to retain only the datapoints that represent lines
• rescale the x and y to create ‘Body Mass Index’ (BMI)1 and ‘steps’ variables
go\$y     <- rev(go\$y)
go       <- go[go\$col != "#fefefeff", ]
go\$bmi   <- go\$y / max(go\$y) * 17 + 15
go\$steps <- 15000 - go\$x * 15000 / max(go\$x)

x   y       col bmi    steps
174 174 550 #555555ff  32 8665.049
175 175 550 #555555ff  32 8628.641
176 176 550 #555555ff  32 8592.233
196 196 550 #555555ff  32 7864.078
198 198 550 #555555ff  32 7791.262
199 199 550 #555555ff  32 7754.854

You may have noticed that the image has a watermark. We could have removed it earlier with {magick}, but can do it now by filtering out the datapoints in that corner.

go\$logo <- ifelse(go\$bmi < 16 & go\$steps < 5500, TRUE, FALSE)
go      <- go[!go\$logo, ]

This leaves us with 16865 datapoints. We can follow the original study by taking a sample and splitting the results into ‘female’ and ‘male’ groups, weighted so that the female group has higher step counts.

go_smp       <- go[sample(nrow(go), 1768), ]
go_smp\$rnorm <- rnorm(nrow(go_smp), mean = 0, sd = 10)
go_smp\$index <- go_smp\$steps * (1 + go_smp\$rnorm)
go_smp\$group <-
ifelse(go_smp\$index < median(go_smp\$steps), "F", "M") |>
as.factor()

bmi       steps group
135597 21.83091 13216.01942     F
85694  25.60182    72.81553     F
199825 17.00909 14817.96117     F
43530  28.75455  5169.90291     M
200308 16.97818 12233.00971     F
55403  27.85818  7900.48544     F

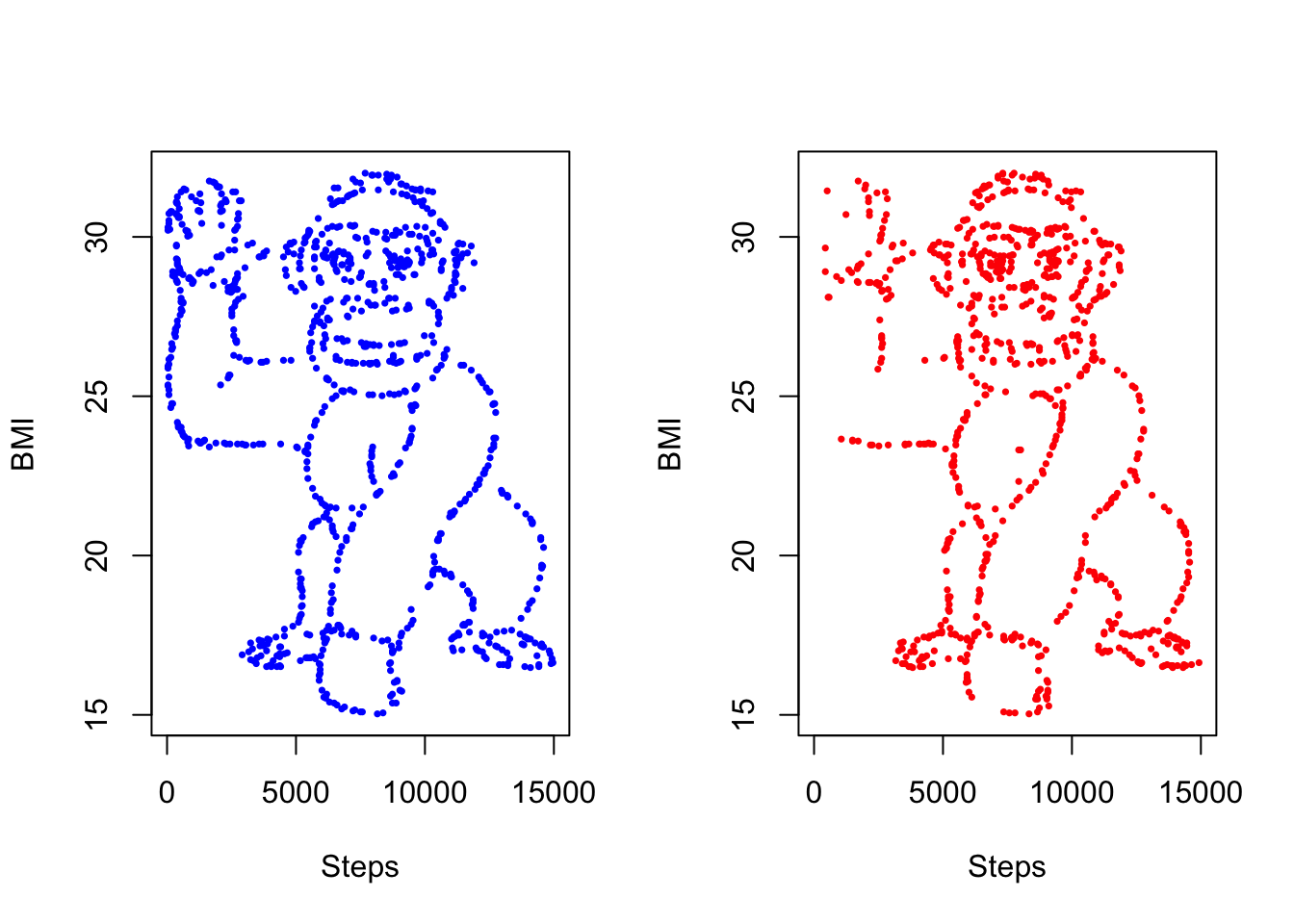

Now finally to plot the datasets side-by-side.

par(mfrow = c(1, 2))

with(
go_smp[go_smp\$group == "F", ],
plot(
steps, bmi,
xlim = c(0, 15000),
pch = 16, cex = 0.5, col = "blue",
xlab = "Steps", ylab = "BMI",
)
)

with(
go_smp[go_smp\$group == "M", ],
plot(
steps, bmi,
xlim = c(0, 15000),
pch = 16, cex = 0.5, col = "red",
xlab = "Steps", ylab = "BMI"
)
)

I see them!

This has been a bit overengineered and could be generalised, but it gives a gist of how you might go about converting an image to a dataframe of x and y positions.

At worst, this is a reminder not to trust researchers and to always check for unexpected gorillas.
